Repair Summary
The following article gives detailed instructions on replacing the engine air filter in a BMW E63/64 6 series vehicle. Even though we have used a 2005 645ci convertible to perform this repair, this article can be applied to any 2004-2010 E63/64 vehicle with minor modifications.
See all vehicles this article applies to
E63 6 Series M6
E63 6 Series 630i
E63 6 Series 645Ci
E63 6 Series 650i
E64 6 Series M6
E64 6 Series 645Ci
E64 6 Series 650i
E64 6 Series 630i
A BMW 645ci air filter replacement takes less than 10 minutes and is an important part of your regular engine maintenance schedule.
One of the easiest maintenance items to perform under the hood of your 2005-2010 E63/E64 6 series is replacing the air filter. Often overlooked, the engine air filter plays an important role in your vehicle's intake system by providing clean uncontaminated air for combustion. Its sole purpose is to filter out dirt, sand, and other contaminants that can get sucked into your engine's cylinders. Not changing your air filter element on a regularly scheduled basis can severely shorten the life span of your BMW 6 series 8 cylinder engine.
According to the BMW Service and Warranty Information manual for E63/64 6 series vehicles, the air filter should be changed every third oil change. The BMW Repair Guide recommends changing your engine air filter every 30,000 miles, or even more frequently if you drive in excessively dusty conditions.
View the detailed parts diagram for this repair.
Includes detailed part diagrams, part numbers and links to purchase all of the required components needed to complete this repair.
Before starting this repair, you must have the following required parts.
All BMW E60, E63/E64 8 cylinder vehicles
This is the same factory air filter that would be installed at the BMW dealership.
Section 1 - Replacing the Air Filter in your 645ci
- Identify the location of your air box - it is on the left side of the vehicle. The air filter is located inside the air box.

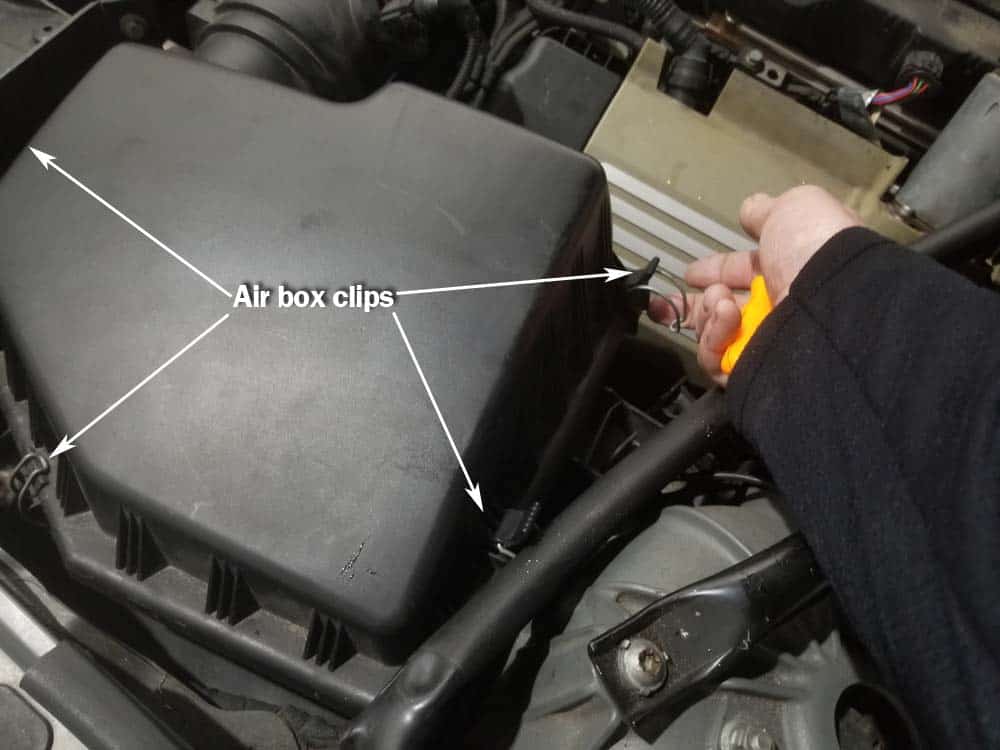

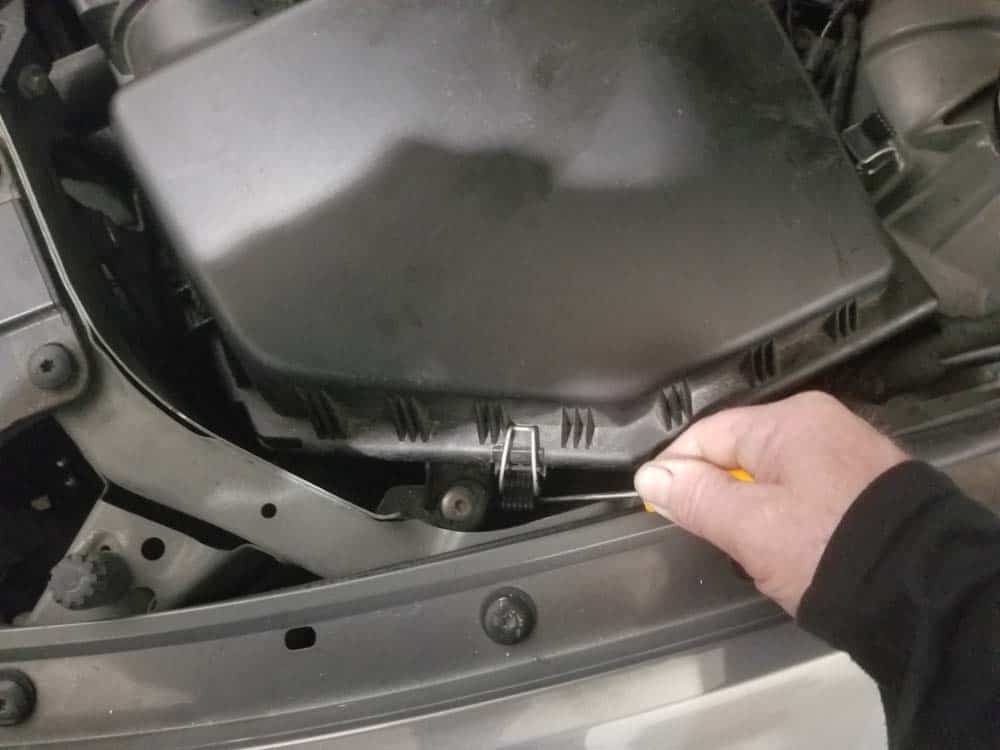

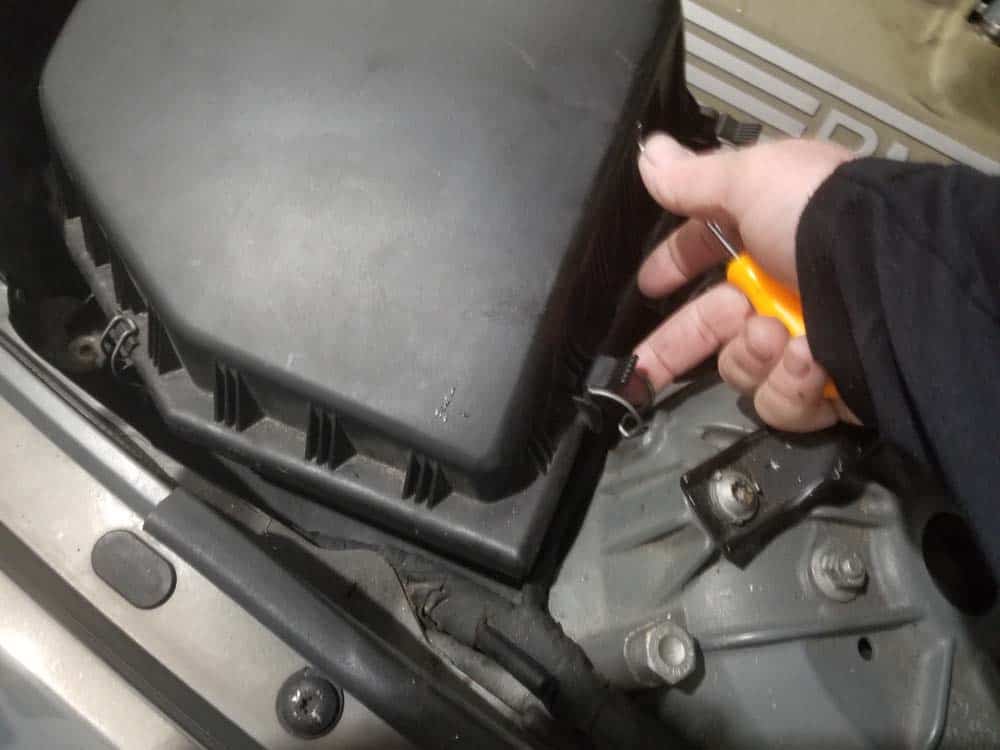

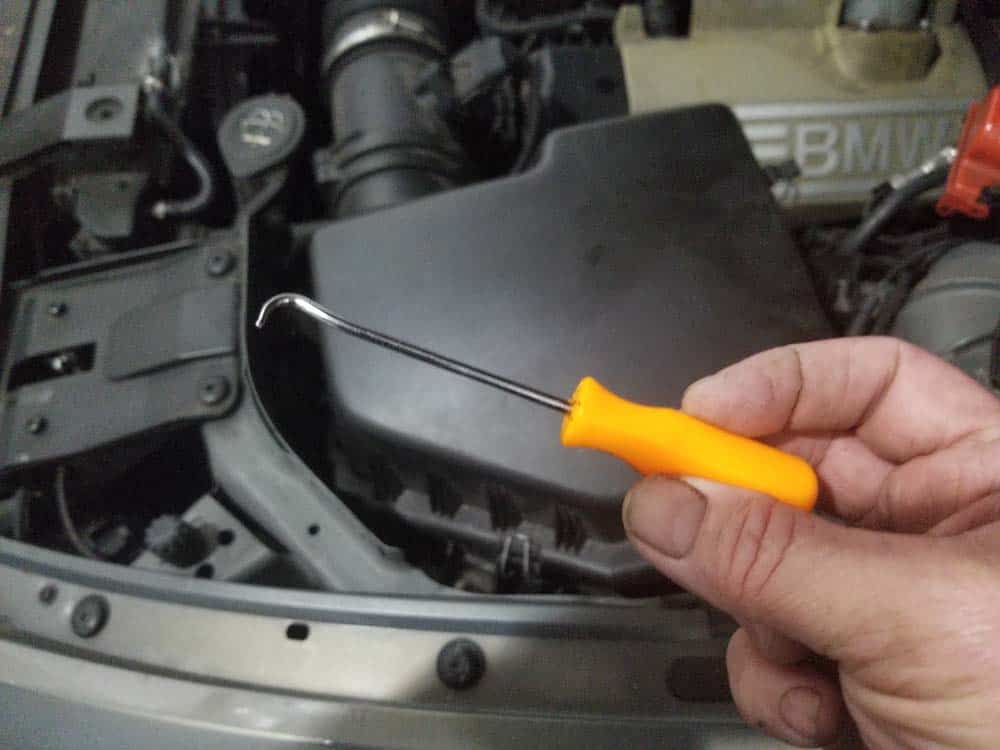

- Release the four air box clips securing the lid. A metal pick or flat blade screw driver can help release the clips that are hard to reach with your fingers.
- Remove the air box lid exposing the air filter. Replace the air filter with a fresh one, and reattach the air box clips.
BMW 645ci Air Filter Replacement Finished
